The Broad Oculus

Los Angeles, CA
White honeycomb‑façade museum building rises to a corner, revealing a window; sits on a paved plaza under clear blue sky, glass entrance labeled "THE BROAD", red banner "BROAD".
Project Info
  • Client: Kreysler & Associates
  • Owner: The Broad
Services

Martin/Martin provided structural calculations, including design parameters, fiberglass material design, and connection design for a large oculus fabricated by Kreysler & Associates. The oculus is composed of lightweight FRP to allow for a unique, sculpted shape. The completed facade creates what the architect Elizabeth Diller has called a “porous exoskeleton” that admits filtered daylight. The indented window by the museum’s entrance looks as though it has been impressed by a giant thumb.

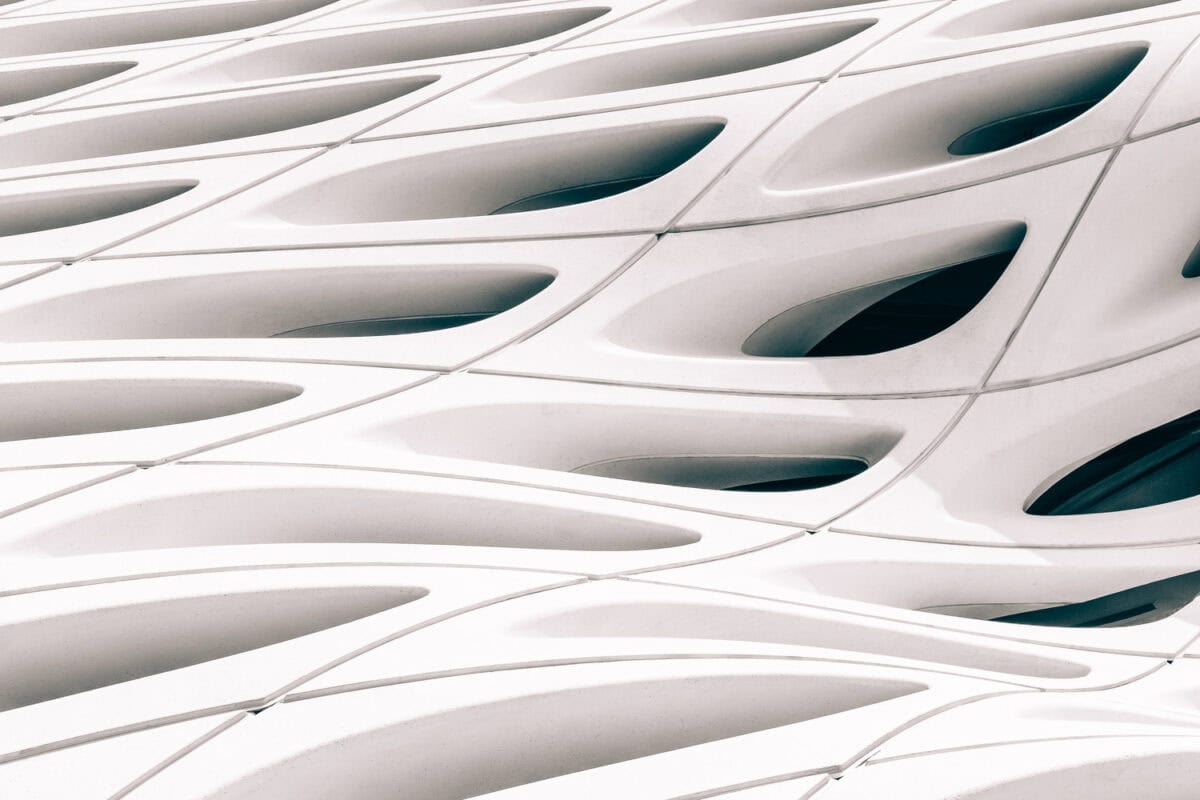

california, los angeles, downtown LA, the broad, museum, wall, outside

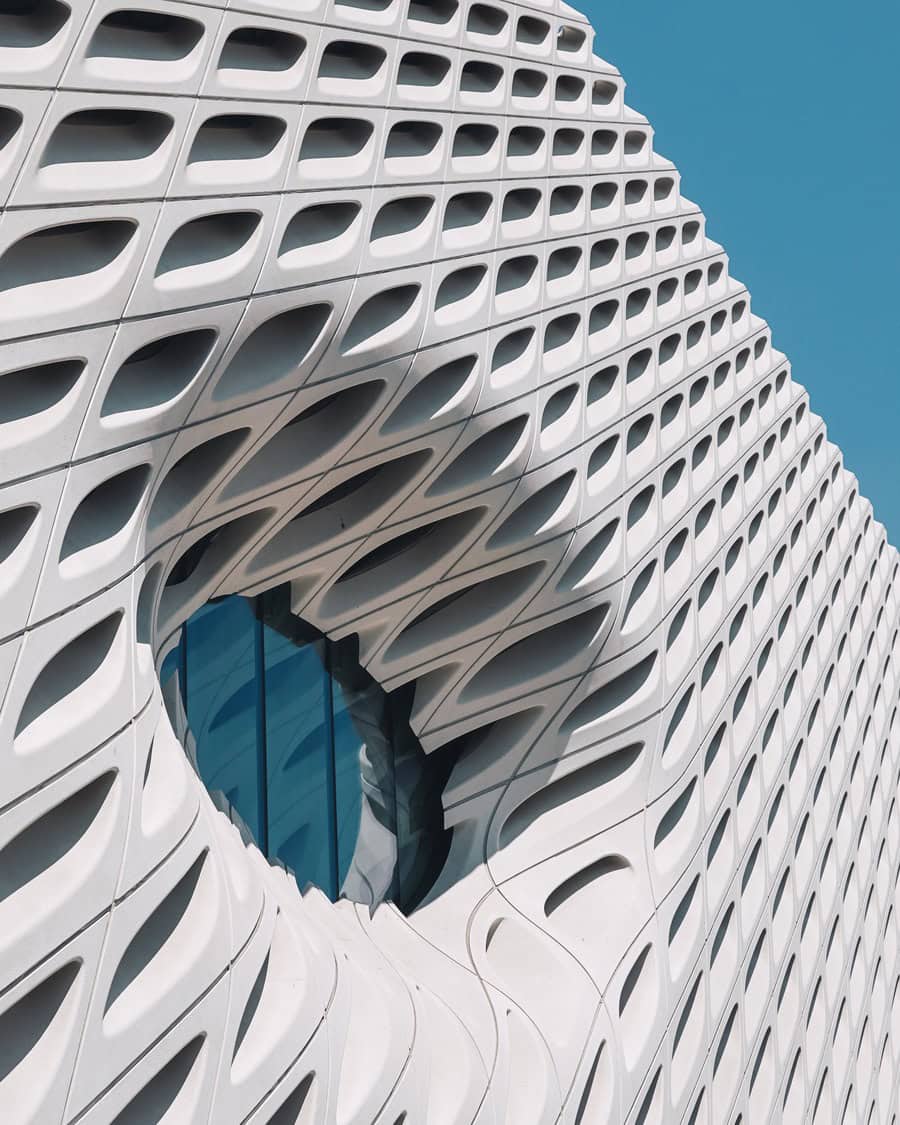

White perforated building façade with repeating teardrop-shaped apertures curves outward, forming an oval opening that exposes blue glass windows, set against a clear, turquoise sky.
A woman stands holding a shoulder bag, looking right, against an enormous white architectural façade patterned with repeating diagonal recessed grooves.

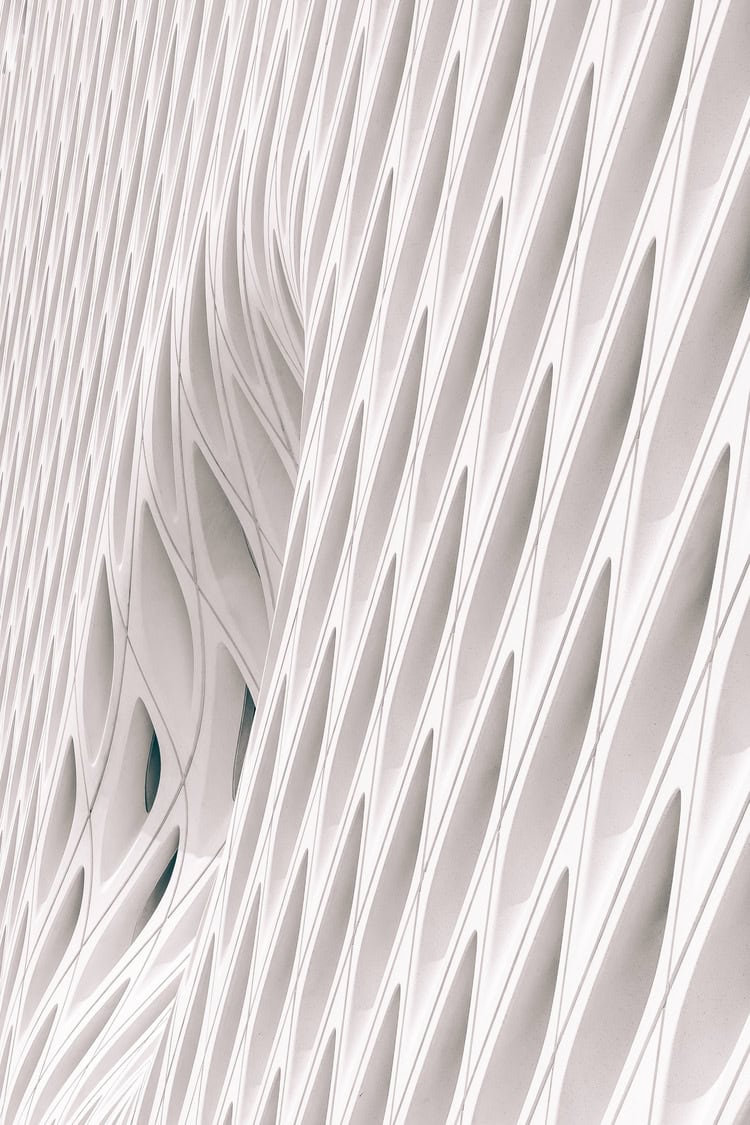

White architectural façade ripples in a diagonal, honeycomb-like pattern of elongated diamond openings, forming a curving, repetitive lattice across a high-rise exterior.
