Table Mesa Park N Ride Pedestrian Bridge

Boulder, CO

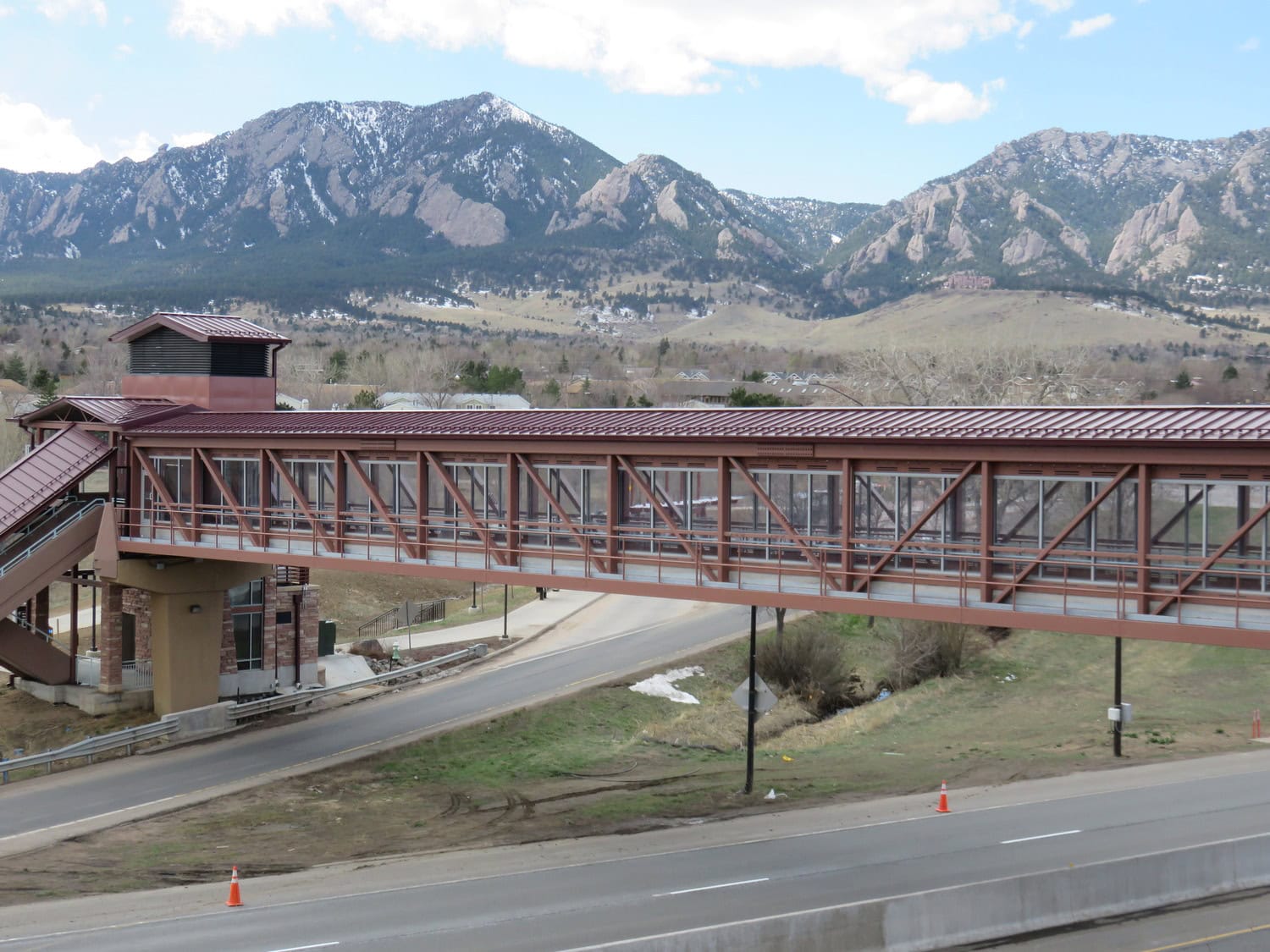

Covered pedestrian bridge spans a road, connecting a stair tower to a sidewalk; mountains with patches of snow rise in the background, with grassy roadside and traffic cones below.
Project Info
  • Client: Zimmerman Metals Inc.
  • Owner: Regional Transportation District
Services
Sectors

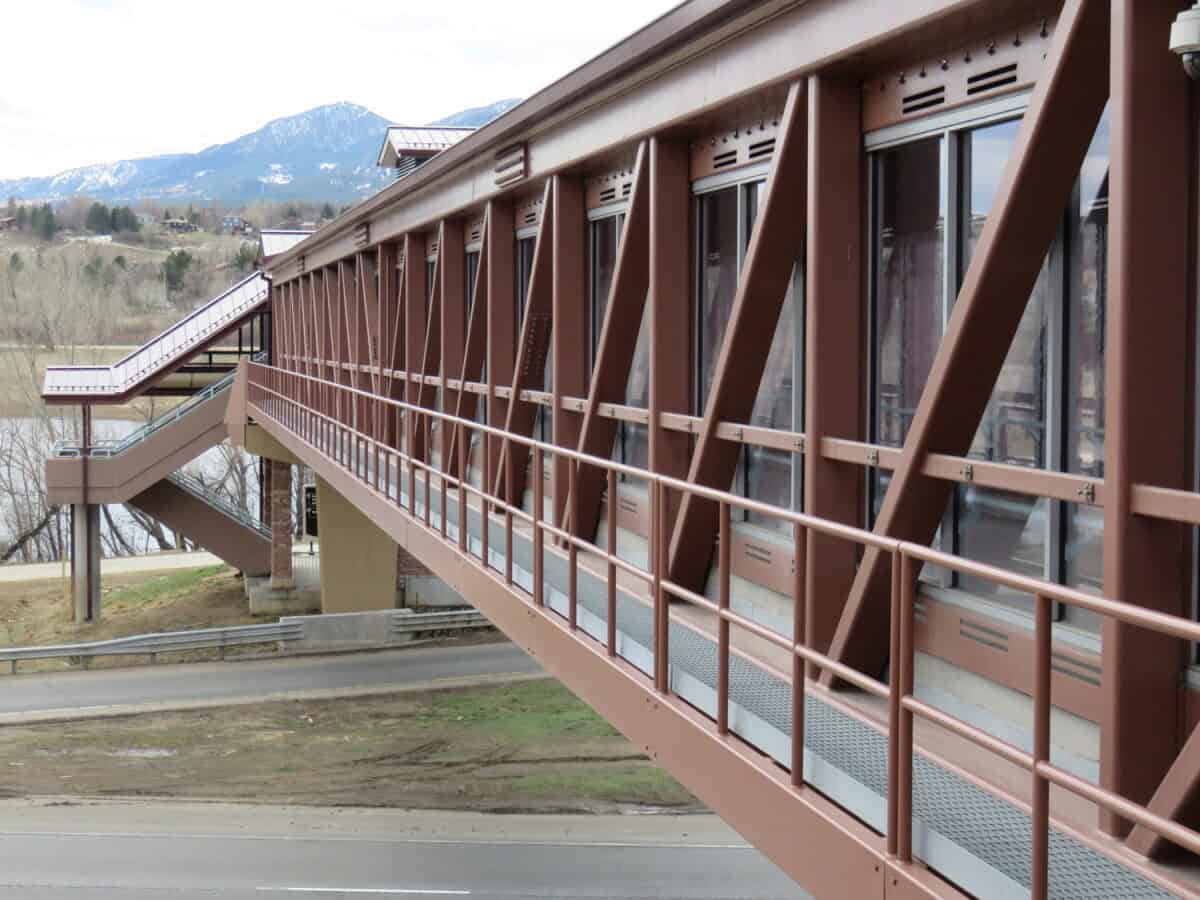

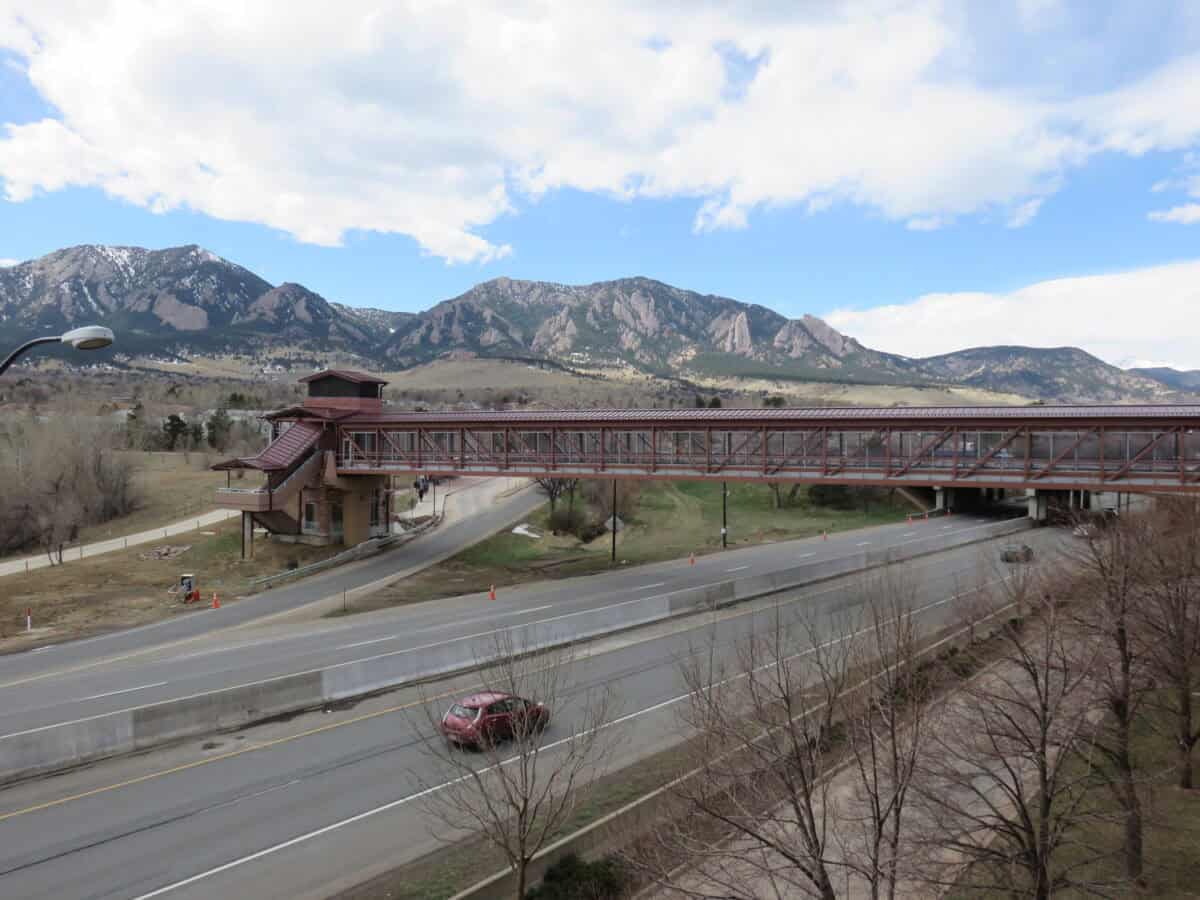

Martin/Martin teamed with fabricator Zimmerman Metals to provide RTD with a 204-foot single span steel pedestrian truss bridge. The bridge provides access across US 36 adjacent to the University of Colorado Boulder campus. The architecturally striking structure is composed of hollow structural section tubes and has a glass façade, metal roof, and window overhangs. We completed steel design utilizing robust 3D modeling software.

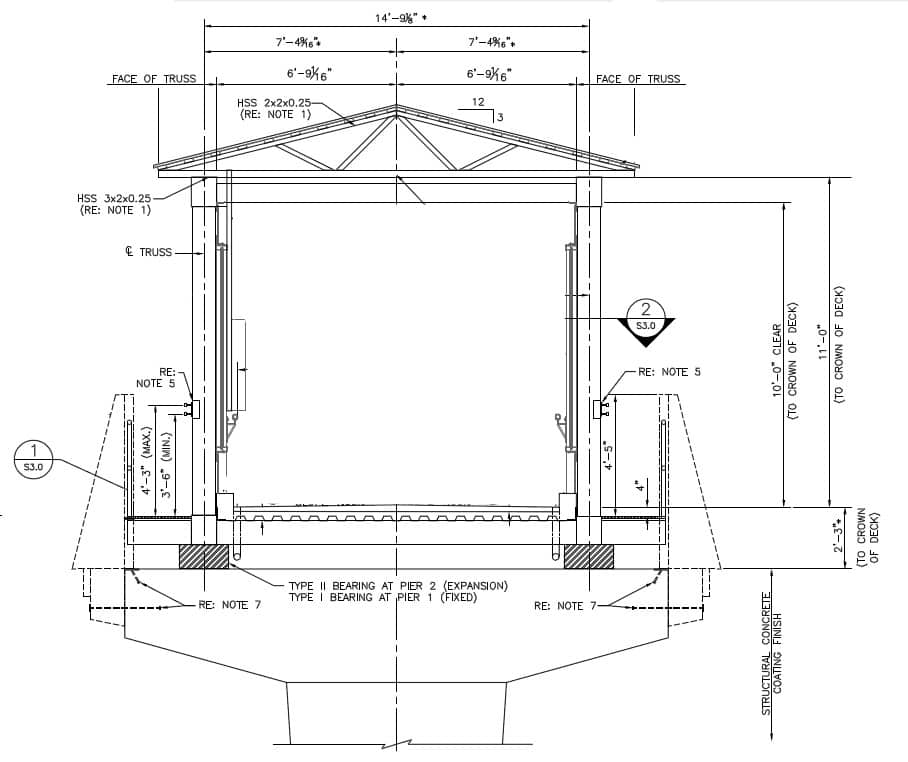

Roofed truss-supported cross-section showing roof trusses, HSS columns, deck, bearings and foundation; annotated with dimensions, notes, section callouts in a construction drawing. Transcribed text: - 14' - 9 5/8" * - 7' - 4 9/16" * - 7' - 4 9/16" * - 6' - 9 1/16" - 6' - 9 1/16" - FACE OF TRUSS - FACE OF TRUSS - HSS 2x2x0.25 (RE: NOTE 1) - HSS 3x2x0.25 (RE: NOTE 1) - 12 - 3 - C.L. TRUSS - 1 (in circle) S3.0 - 2 (in circle) S3.0 - RE: NOTE 5 - 4' - 3" (MAX.) - 3' - 6" (MIN.) - 4' - 5" - 4' - 10' - 0" CLEAR (TO CROWN OF DECK) - 11' - 0" (TO CROWN OF DECK) - (TO CROWN OF DECK) - 2' - 3 3/4" (TO CROWN OF DECK) - RE: NOTE 7 - TYPE II BEARING AT PIER 2 (EXPANSION) - TYPE I BEARING AT PIER 1 (FIXED) - STRUCTURAL CONCRETE COATING FINISH
